OVERVIEW OF
THE TECHNOLOGY
Buy here!

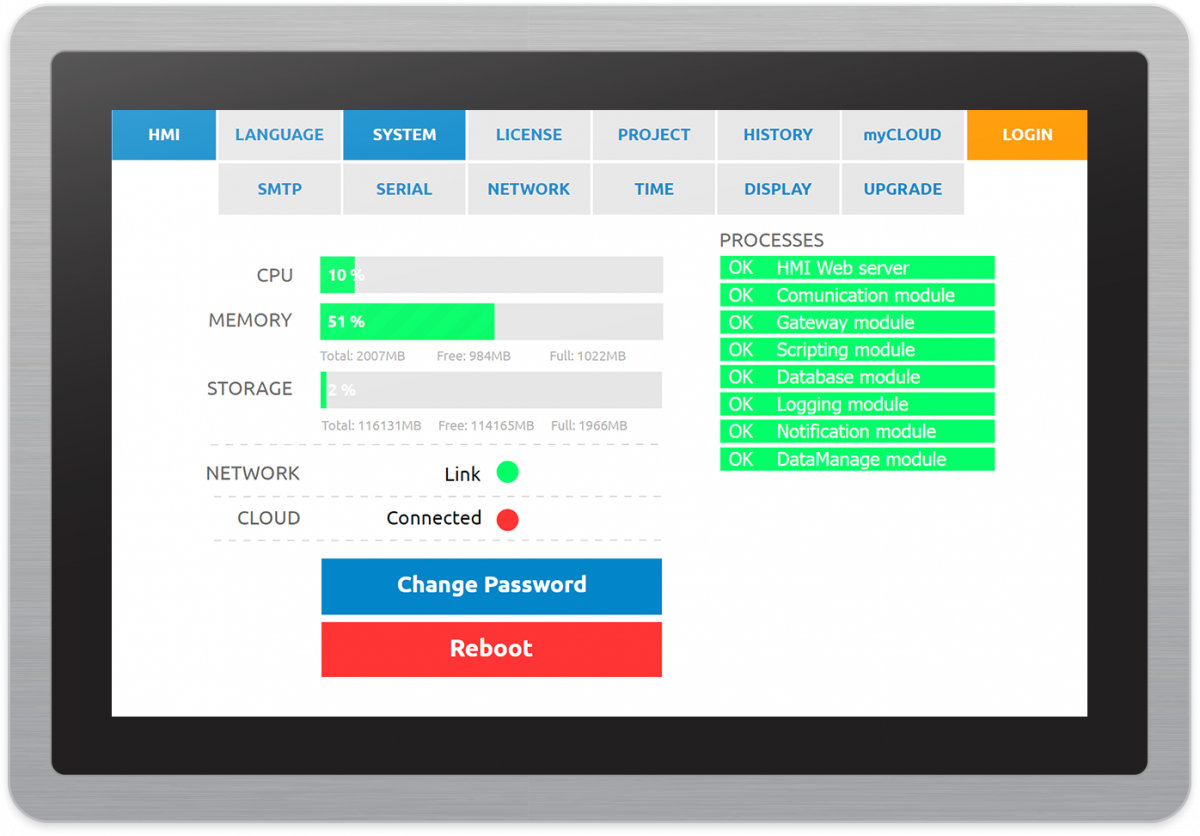

myPANEL
- SIMPLE SETUP
- REMOTE ACCESS
- EASY TO USE

DIRECT ACCESS

VISUALISIERUNG IHRER PRODUKTION

myPANEL bietet Ihnen eine kompakte Lösung der Überwachung und Kontrolle Ihrer Produktion. In jedem PANEL ist eine Visualisierungsplattform, myPRO inklusive unlimitierter Lizenz enthalten. Wir bieten Ihnen eine Auswahl von vier verschiedenen Operatoren Panels an; in 5′, 7′, 10′ and 15′ Zoll.

BENUTZEROBERFLÄCHE

Mit den Operatoren Panel können Sie, dank unserem remote control feature, all Ihre Produktionslinien überwachen und jegliche Parameter jederzeit von Unterwegs aus einsehen und wenn nötig anpassen.





HIGHLIGHTS

myPANEL ist ein Monitor und Kontrollsystem mit vorinstallierter myPRO Software, welches viele Vorteile für Ihre Produktion mit ich bringt:



General overview

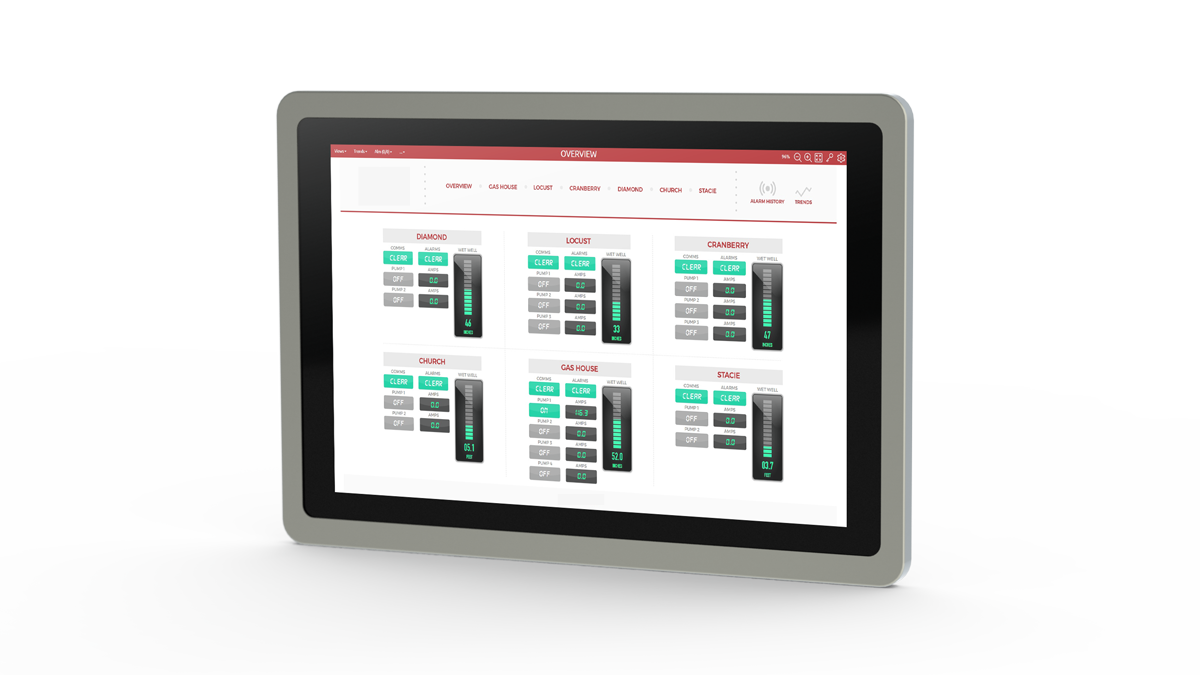

The production line or a machine can be drawn in modern looking visualisation
that gives the overview of the basic status of the technology.

Actions

To display, manage and log actions, the best way is to use timeline tool.
Each action on the production line is written in the timeline. The user has general overview of the technology.

Recipe management

Active recipes show the parameters of the orders. You can change the recipes,
add or delete them. All important data is available in the table.

Statistics

Advances statistic tool generates many different graphs or trends which are useful for predictions
and optimizations of the processes. In the picture, there in a Box Plot view with the line speed.

Predictive maintenance

For managing predictive maintenance, the best option is to use TPM (Total productive maintenance). This tool displays the list of
regular maintenance counted from the real running hours – that means that it counts only the time when the machine really works.

Statistics

Advances statistic tool generates many different graphs or trends which are useful for predictions
and optimizations of the processes. In the picture, there is 3D chart which displays the performance.

PRODUKTNUTZER

3 TYPES OF USERS

MANAGERS

MANAGERS

Managers supervise the technology and propose changes to optimize the processes. With the collected data, they can do smart prediction.

OPERATORS

OPERATORS

Operators are responsible for easily and steady production. With myPANEL they can react fastly to the current issues and optimize the production.

MAINTENANCE

MAINTENANCE

Maintenance has the local access to the technology via myPANEL. That helps to shorten the time and costs when the production fails.

FEATURES

Unser Operatoren System myPANEL mit Integriertem SCADA System garantiert Ihnen eine Preiswerte und sichere Lösung für Ihre Produktion.



General overview of technology

General overview of technology

Alarm system and statistics

Alarm system and statistics

Online notifications

Online notifications

Advanced data-logging

Advanced data-logging

Reporting tools

Reporting tools

Trending tools

Trending tools

Production management

Production management

User action tracking

User action tracking

Quality management

Quality management

OEE and performance

OEE and performance

Predictive maintenance

Predictive maintenance

Remote connectivity

Remote connectivity

DIFFERENT SIZES



myPANEL 5

myPANEL 5

myPANEL 7

myPANEL 7

myPANEL 10

myPANEL 10

myPANEL 15

myPANEL 15

SO FUNKTIONIERTS

2 Scenarios

myPANEL -> PLCs

In diesem Schema wird myPANEL direkt mit den PLCs. Die Vorsteile hierbei sind:
einfache Topology, verlässlich und sicher, schnelle Installation, keine Wartungen nötig.

myPANEL -> SCADA Server (myBOX or myPRO) -> PLCs

In diesem Schema wird myPANEL mit dem SCADA Server gekoppelt und dieser kommuniziert dann mit den PLCs. Vorteile hierbei sind:
Diverse myPANELs können gleichzeitig mit dem SCADA Server verbunden werden, alle User Aktionen werden dokumentiert und gespeichert, Steuerung über ein Administratoren PANEL ist möglich, hohe Performance wird garantiert.

Die Animation zeigt wie das automatic switchover funkioniert. Es werden beide Schemata kombiniert.
In der Default Einstellung kommuniziert myPANEL über den Server. Wenn die Kommunikation via Server abbricht,
wechselt myPANEL automatisch zur direkten Kommunikation mit den PLCs.

TECHNISCHE DETAILS



.



myPANEL 5

myPANEL 7

myPANEL 10

myPANEL 15

System
SW License Unlimited Unlimited Unlimited Unlimited
PLC protocols
Siemens S7

S7-1200, S7-1500, S7-300, S7-400, …

EtherNet / IP

ControlLogix, CompactLogix, Micrologix 1200, Micrologix 1400, Micrologix 1500, SLC 500, PLC 5, Omron PLCs, …

Modbus TCP  Wago, Schneider, Micrologix, RTUs, …
Modbus Serial

ABB AC500, ABB AC700, IPCDAS, ADAM, RTUs, …

Melsec Binary

Melsec-Q, E71 controller type, 3E packets

Toyopuc

Full support with hierarchy

OPC UA

New OPC standard

Display
LCD 5 inch 7 inch 10.1 inch 15.6 inch
Resolution 800 x 480 pixels 800 x 480 pixels 1280 x 800 pixels 1366 x 768 pixels
Luminance 350 cd/m² 400 cd/m² 300 cd/m² 300 cd/m²
Aspect ratio 5:3 5:3 16:10 16:9
Core system
Architecture ARM  ARM Intel Intel
Processor  NXP i.MX7 Dual Core NXP i.MX7 Dual Core X5-E8000 X5-E8000
Memory 1GB DDR3L 1GB DDR3L 2GB DDR3 2GB DDR3
Storage 4GB eMMC 4GB eMMC 120 GB SSD 120 GB SSD
Network LAN 2x Gigabit LAN 2x Gigabit LAN 2x Gigabit LAN 2x Gigabit LAN
Power
Voltage

9 – 36 V DC

9 – 36 V DC

9 – 36 V DC

9 – 36 V DC

Wattage 10 W 10 W 30 W 30 W
Power Connector 2-pin Micro-Fit 3.0 2-pin Micro-Fit 3.0 2-pin Micro-Fit 3.0 2-pin Micro-Fit 3.0
Dimensions
Dimensions 150(W) x 105(H) x 42(D) mm 198(W) x 136(H) x 52(D) mm 263(W) x 182(H) x 75(D) mm 407(W) x 257(H) x 62(D) mm

FAQ

.

Is there any tag limit on myPANEL?

There is no tag limit on myPANEL (myPANEL includes unlimited version. License is locked to a device – can’t be transferred).

Is it possible to access myPANEL HMI from other computer via browser?

myPANEL HMI can be accessed like myPRO or myBOX from a different computer by simply typing it’s IP address into your computer browser (you need to be on the same network as myPANEL is).

What upgrade file should I use for myPANEL?

If your myPANEL contains ARM CPU (you can find this on a sticker of myPANEL ARM CPU – NXP i.MX7 Dual Core etc…), then you need to use myPANEL8.sh file.

If your myPANEL contains Intel CPU (you can find this on a sticker of myPANEL Intel CPU – X5-E8000 etc…), then you need to use myPANEL8_x64.sh file.

Does myPANEL support 4G/3G connection?

myPANEL Does not support 4G/3G connection to the internet.

Can myPANEL send SMS notifications?

myPANEL does not support SMS notifications however, we can program this feature in case of ordering more units of myPANEL, for more info, please contact us at info@myscada.org.

Does myPANEL support GPIO?

myPANEL does not support GPIO.

DOWNLOADS

.

myPANELManualsCertifications2D/3D models

Zum downloaden der Software, registrieren oder loggen Sie sich hier ein.

Latest Firmware (myPANEL version 5′ and 7′) Download
Latest Firmware (myPANEL version 10′ and 15′) Download
Changelog Download

b
For previous versions, please, go to HISTORY

myPANEL leaflet Download
myPANEL leaflet (DE) Download
User Manual User Manual Online
myPANEL 5″
Drop test report Download
Vibration test report Download
Shock test report Download
FCC verification of compliance Download
CE verification of compliance Download
myPANEL 7″
Drop test report Download
Vibration test report Download
Shock test report Download
FCC verification of compliance Download
CE verification of compliance Download
myPANEL 10″
Drop test report Download
Vibration test report Download
Shock test report Download
FCC verification of compliance Download
CE verification of compliance Download
myPANEL 10″ (waterproof)
Drop test report Download
Vibration test report Download
Shock test report Download
FCC verification of compliance Download
CE verification of compliance Download
myPANEL 15″
Drop test report Download
Vibration test report Download
Shock test report Download
FCC verification of compliance Download
CE verification of compliance Download
myPANEL 15″ (waterproof)
Drop test report Download
Vibration test report Download
Shock test report Download
FCC verification of compliance Download
CE verification of compliance Download
myPANEL 5″
STP file Download
myPANEL 7″
STP file Download
myPANEL 10″
STP file Download
myPANEL 10″ (waterproof)
STP file
myPANEL 15″
STP file Download
myPANEL 15″ (waterproof)
STP file
